QC6 Quuppa Controller Product Specification
The QC6 Quuppa Controller is a preconfigured device for running the Quuppa Intelligent Locating System™. The system allows you to locate and track any objects equipped with Quuppa Tags in an environment where Quuppa Location infrastructure, including our Locators, has been installed.
System
| Processor | Intel® Comet Lake Core i5 |
| Processor Speed | 2.30 GHz (i5-10500) |
| Processor Cores | 6 |
| Chipset | Intel Q470 |
| Integrated Graphics | Intel UHD Graphics 630 |
| Memory | 32 GB |
Rear I/O
| Ethernet | 2 Gb LAN ports |
| USB |
2 USB 3.1 Gen 2 ports 2 USB 3.1 Gen 1 ports |
| Video | 3 DisplayPorts |
| Power | 1 12 ~ 24 V, 4-pin DC jack (Terminal block input optional) |
From I/O
| USB | 4 USB 3.2 Gen 2 ports |
| Serial | 1 COM port (optional) |
| Other |
1 Power button 1 SIM Card slot 1 8-bit DIO port (optional) 1 Audio jack; line-out, mic-in |
Expansion & Features
| Expansion & Storage |
2x M.2 2280 slots (NVME PCIe x1/SATA) |
| Features | Wide Power Input |
Mechanical
| Dimensions (WxHxD) | 154 x 50.8 x 210 mm |
| Mounting Options |
DIN-mount VESA-mount Wall-mount |
Environmental & Regulatory
| Operating Temperature | 0°C to 50°C |
| Certifications |
FCC 47 CFR Part 15 CE WEEE Directive (2002/96/EC) Low Voltage Directive (2014/35/EU) Electromagnetic Compatibility Directive (2014/30/EU) Radio Equipment Directive (2014/53/EU) - For configurations with wireless transmitters RoHS 3 (2015/863/EU) REACH EN 55024 EN 55032 EN 55035 EN 60950-1 EN 61000-3-2 EN 61000-3-3 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 EN 61000-4-11 EN 62368-1 |

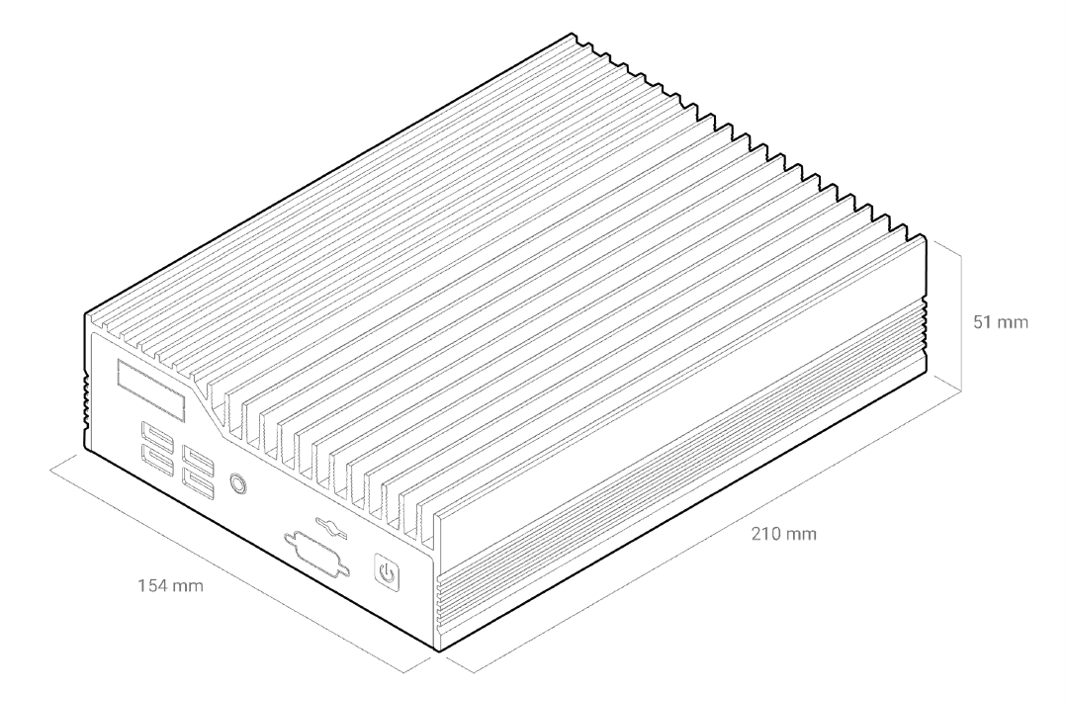

Product Dimensions
For more details, please see the manufacturer's page for the device.
